Description

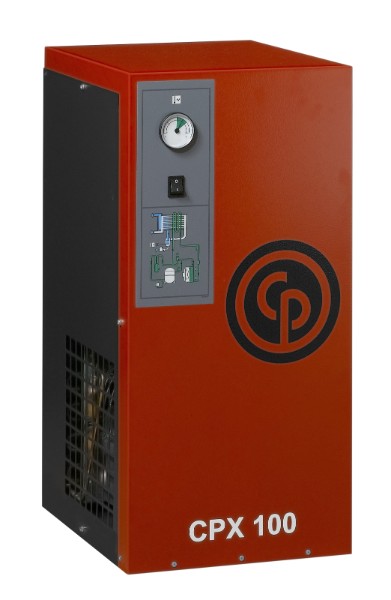

CPX Dryers – 230V/50 Hz / Single Phase
| Model | Ambient Deg C | Flow CFM | Pressure (Bar) | Dew Point Deg C | Refrigerant | Port (R/BSPT) |
| CPX10 | 25 | 14.8 | 8 | 7 | R134A | 3/4″ |
| CPX20 | 25 | 27.5 | 8 | 7 | R134A | 3/4″ |
| CPX30 | 25 | 33.9 | 8 | 7 | R134A | 3/4″ |
| CPX40 | 25 | 48.7 | 8 | 7 | R134A | 3/4″ |
| CPX60 | 25 | 63.5 | 8 | 7 | R134A | 3/4″ |
| CPX80 | 25 | 99.5 | 8 | 7 | R134A | 1″ |
| CPX100 | 25 | 127.1 | 8 | 7 | R134A | 1″ |
| CPX125 | 25 | 152.5 | 8 | 7 | R134A | 1″ |
| CPX150 | 25 | 169.4 | 8 | 7 | R134A | 1″ |
| CPX180 | 25 | 220.3 | 8 | 7 | R134A | 1-1/2″ |
| CPX225 | 25 | 275.3 | 8 | 7 | R134A | 1-1/2″ |
| CPX270 | 25 | 328.3 | 8 | 7 | R134A | 1-1/2″ |
CPX Dryers – 400V/50 Hz/ 3 Phase
| Model | Ambient Deg C | Flow CFM | Pressure (Bar) | Dew Point Deg C | Refrigerant | Port Type |
| CPX350 | 25 | 423.6 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX425 | 25 | 508.3 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX530 | 25 | 603.6 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX700 | 25 | 698.9 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX850 | 25 | 848 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX1000 | 25 | 1060 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX1200 | 25 | 1236 | 8 | 7 | R410A | 2-1/2″ BSPT |
| CPX1700 | 25 | 1766 | 8 | 7 | R410A | DN125 |
| CPX2500 | 25 | 2374 | 8 | 7 | R410A | DN125 |
Notes
* For full specifications see data sheets.
* Ensure dryers are sized correctly and rerated accordingly.
* Standard supply voltage 400 Volt / 50 Hz / 3 phases.
* Warranty on rotary product is 2 years on air end, 12 months package from shipment date.
* Warranty on dryers, stand alone and fitted to units, is 12 months from shipment date.
